KanexPro 4K HDMI 1x4 Splitter with HDCP2.2

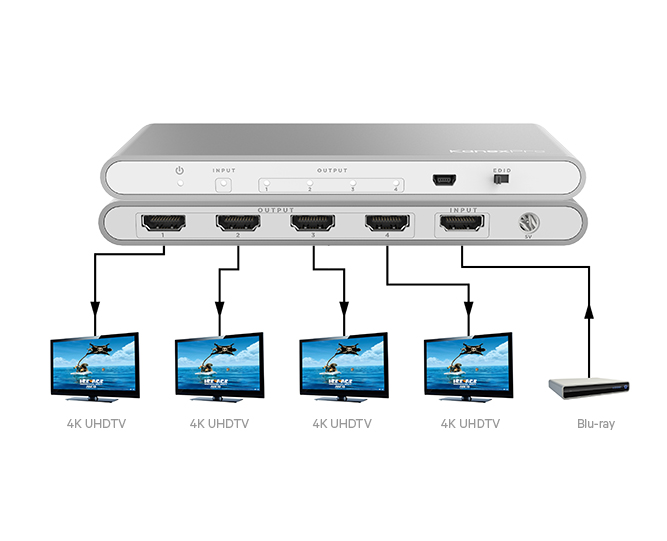

  • Distribute one 4K HDMI video and audio signals to four displays

  • 4K@60Hz UHD, 1080p & 3D resolutions

  • 4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2

  • 4Kx2K @60Hz with 12bit YCBCR 4:2:0

  • Conforms to High Speed HDMI specifications:

  • (Deep color, HD lossless audio formats & Lip Sync)

  • EDID Selector for optimal resolutions

  • HDCP 2.2 compliant

  • Built-in Smart EDID Control

  • Front-panel LED’s for input/ output signal presence

  • Includes 5V DC external power supply



  • Applications:
    The 1x4 DA fully conforms to the latest High Speed HDMI specifications with HDCP 2.2. This HDMI splitter is optimized for distributing HDMI video and embedded multi-channel digital audio to multiple 4K display environments such as residential or digital signage markets and computer lab applications.
