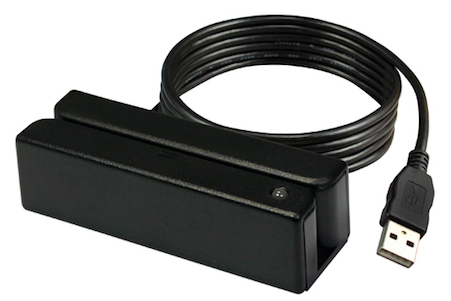

Uniform MSR213U Reader
USB HID Keyboard Interface Magnetic Stripe Reader

The MSR213U USB HID keyboard Interface magnetic stripe reader is ideal for retail, time keeping, security and other card reader related systems. The triple tracks of the MSR213U are uniquely designed to read credit/debit/loyalty cards and driver licenses.

The MSR213U communicates with a host computer via USB interface and reads and converts magnetic stripe data to USB Human Interface Device (HID) USB keyboard interface.

It is a Manual swipe, bi-directional and reads high and low coercivity magnetic stripes (300 - 4000 Oe). It has the built-in capability for firmware download and an LED and beeper for reading status.


Uniform MSR213U Reader Specification


Uniform MSR213U Reader Features
  • Read magnetic strip cards

  • Read high and low coercivity magnetic stripes

  • Can be configured as USB HID

  • USB HID or USB keyboard emulation interface

  • no thrid party device driver is required.

  • Firmware downloadable

  • Multi-language support

  • Manual Swipe, bi-directional

  • LED and beeper for reading status

  • Low Power Consumption

  • Reliable for over 1,000,000 card swipes
  • 15 kv ESD protected
