Kanexpro 4K HDMI & VGA Wall Plate Transmitter Over HDBaseT™
MPN: WP-HDBASETX

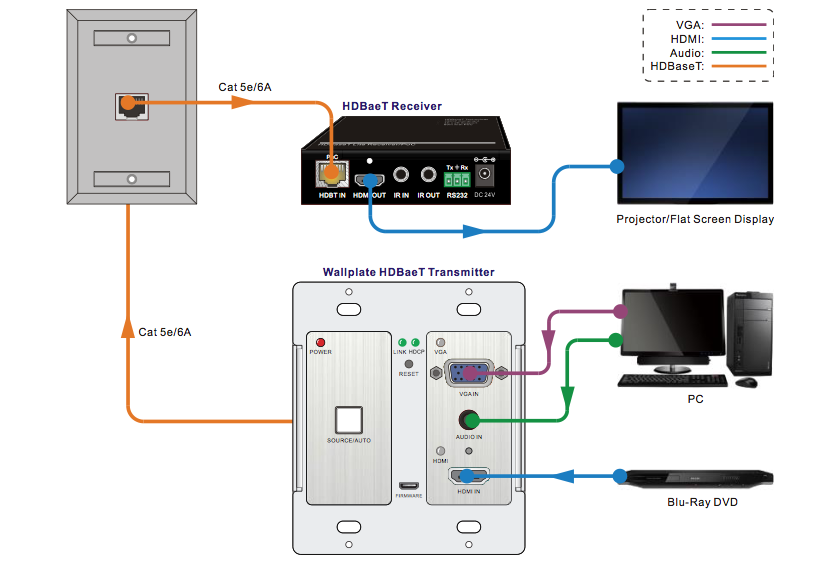

The KanexPro WP-HDBASETX is a compact 2-input transmitter for sending 4K HDMI video signals or 15-pin HD analog video, audio and control up to 230 feet (70m) over a shielded CAT6. This Décora style 2-gang wall plate also supports PoH - Power over HDBaseT to the receiver.

Based on HDBaseT™ technology, this wall plate extender is HDCP and EDID compliant ensuring proper output to displays.

Applications:
Ideally used in classrooms, lecture halls, boardrooms, where HDMI and/ or analog VGA based source devices are combined to present high-resolution signals up to 4K.


Features

  • Transmits HDMI or analog video, control

  • Auto-switching between inputs

  • Supports computer and video resolutions

  • Remote power supporting PoE

  • HDCP & EDID compliant

  • RS-232 for control

  • Supports high bandwidth up to 10.2 Gbps

  • Locking HDMI connector

  • High grade aluminum design

  • Backed by KanexPro 3-Year Parts
