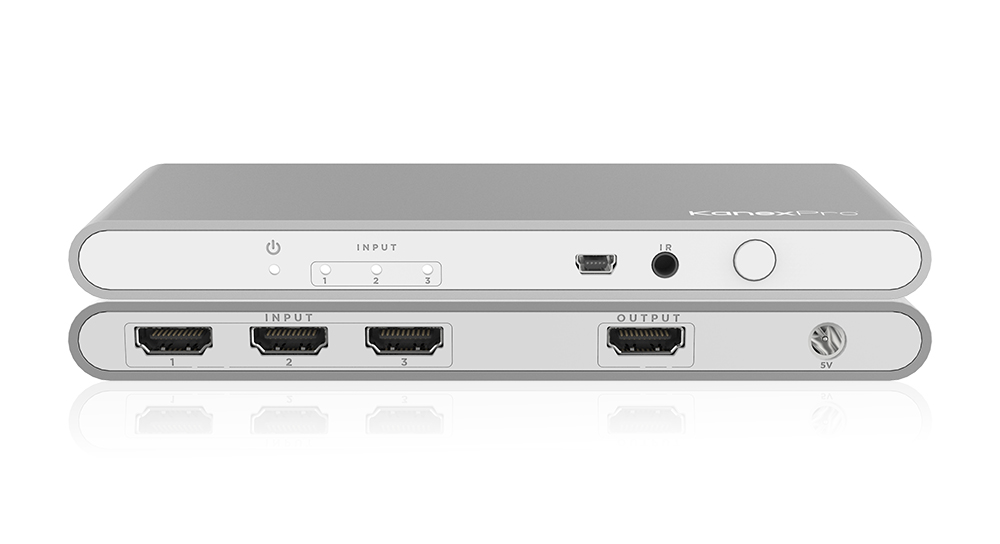

Kanexpro 4K/30Hz HDMI 3X1 Switcher
MPN: SW-HD20-3X14K

The KanexPro SW-HD20-3X14K is a high-performance, three HDMI input to one HDMI output switcher engineered to support True4K UHD resolutions up to 4K@60Hz with HDCP2.2 specifications. It also supports all 3D TV formats and Full HD 1080p resolutions. Instantly switch between your 4K HDMI devices to one display and control the switch using IR remote included.

Perfect for home theater rooms, small offices and other applications where there is a need to switch three HDMI sources to one 4K display.

The SP-HDBT1X4 is ideally used for ultra HD signal transmission or broadcasting digital signage and large scale control centers where HD & 4K signals can be cascaded up to 12 displays on a 230 feet (70m) run over shielded CAT6.

Application:
Perfect for multi-screen classrooms or presentation rooms, retail showrooms, sports bars, and digital signage where you can route and distribute high resolution signals to several displays 230 feet from a remote based media player or PC.


Features

  • Auto switch three HDMI sources to one 4K display

  • 4K@60Hz UHD, 1080p & 3D resolutions

  • 4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2.

  • 4Kx2K @60Hz with 12bit YCBCR 4:2:0

  • Computer resolutions up to QSXGA@60Hz

  • Supports 3D frame sequential video formats to 1080p @60Hz

  • HDCP 2.2 compliant

  • Digital audio support: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

  • High bandwidth for ultimate video experience

  • Front-panel LED’s for input/ output signal presence

  • Ultra compact design

  • 5V DC external power supply included

  • Includes IR remote
