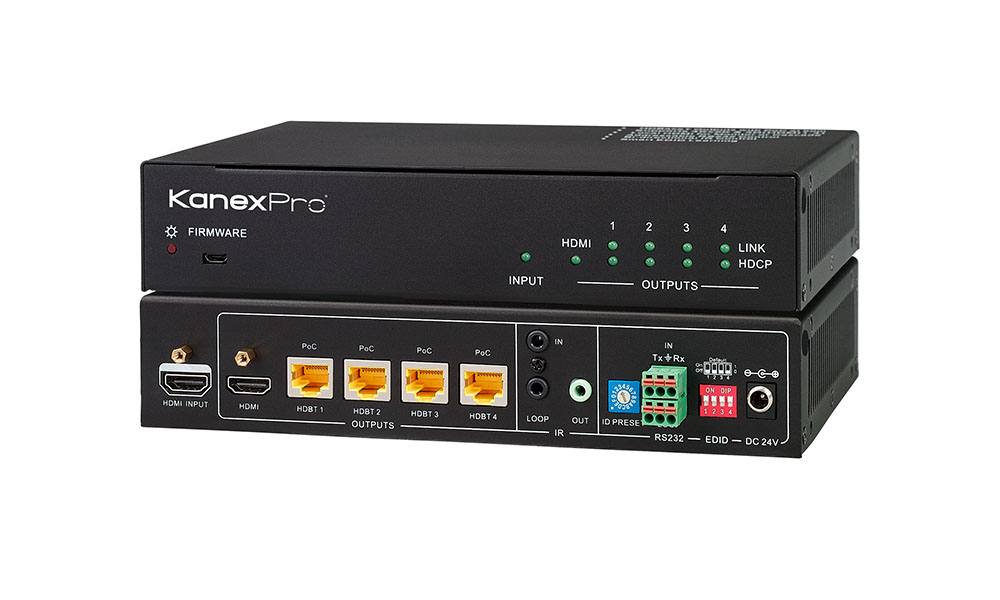

Kanexpro 4K UHD 1x4 Distribution Amplifier up to 230 feet (70m)
MPN: SP-HDBT1X4

The KanexPro one HDMI input with four output over HDBaseT is a half-rack width distribution amplifier, which reliably broadcasts one HDMI source signal to four Ultra HD 4K displays over single CAT6.

It can also be daisy –chained to support up to 12-displays without losing any signal integrity using HDBaseT technology.

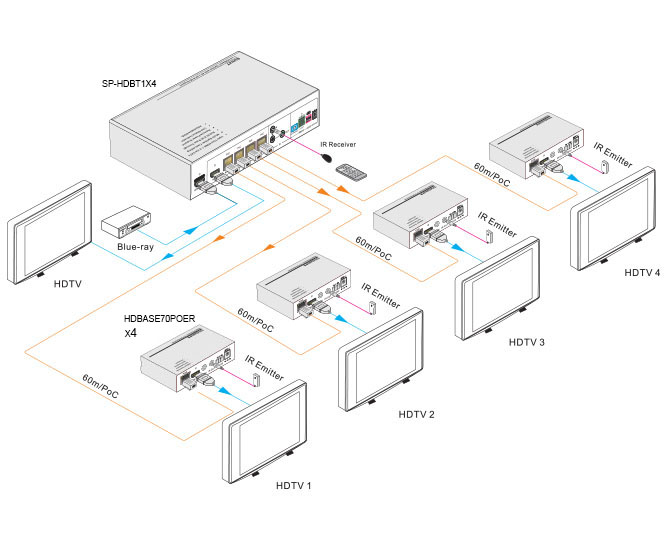

The SP-HDBT1X4 is ideally used for ultra HD signal transmission or broadcasting digital signage and large scale control centers where HD & 4K signals can be cascaded up to 12 displays on a 230 feet (70m) run over shielded CAT6.

Application:
Perfect for multi-screen classrooms or presentation rooms, retail showrooms, sports bars, and digital signage where you can route and distribute high resolution signals to several displays 230 feet from a remote based media player or PC.

Features

  • Broadcast one Input to four 4K UHD displays

  • Extend up to 70 meters over single CAT6

  • HDBaseT outputs supports PoE

  • Built-in DIP switch for EDID management

  • Bandwidth up to 10.2 Gbps

  • Supports computer video

  • Local HDMI output for monitor support

  • Daisy-chainable to up to 12 displays

  • Includes locking HDMI connectors

  • Control via RS-232 & IR loop-in

  • Firmware upgradeable via built-in USB

  • Rack mountable metal enclosure with rack ears

  • Backed by KanexPro's 3-Year full parts



  • Note: The Splitter does not include HDBaseT Receivers: HDBASE70POER receivers are ordered separately, please contact sales for more information.
