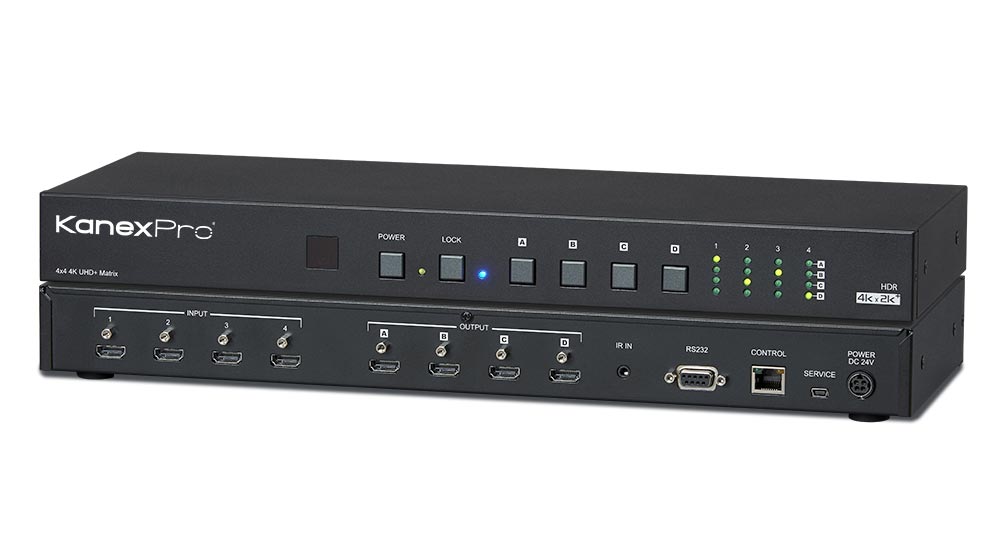

Kanexpro 4x4 HDMI 2.0 Matrix Switcher
MPN: HDMX44-18G

The KanexPro HDMX44-18G is a professional 4-in and 4-out HDMI matrix featuring HDCP 2.2 and the latest HDMI 2.0 specifications supporting ultra HD resolutions up to 4K @60Hz.

Each HDMI port provisions full bandwidth of 18 Gbps with HDR and Dolby Vision pass-through.

It can be fully controlled via RS-232, IR and Web based GUI using Ethernet where end-users can switch, control and manage the matrix right from the computer or any 3rd party touch-panel or a control system.

Applications:

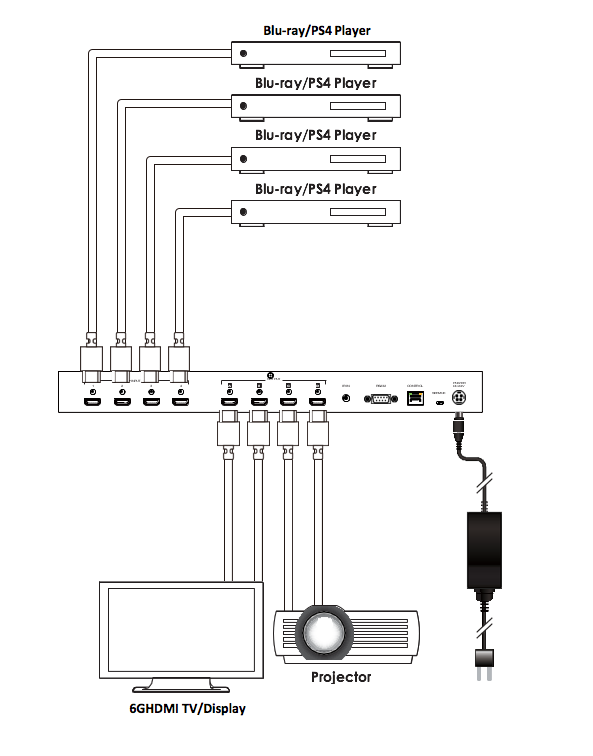

Perfect for whole house distribution systems and house of worship centers as well as corporate boardrooms where swift, reliable switching and distribution of 4K/60 HDMI signals are critical to meet pixel-by-pixel needs with HDR.

Features

  • Cross-switch 4 HDMI devices

  • Distribute 4Kx2K@60Hz

  • 4K & UHDTV resolutions

  • True4K @ 4096x2160@60Hz

  • Supports Dolby Vision & HDR pass-thru

  • Supports 48-bit Deep Color

  • Supports LPCM 7.1 pass-thru bit stream

  • HD bit stream audio formats over HDMI

  • HDCP 1.4 & 2.2 Compliant

  • Powerful EDID management tools

  • Control via front-panel buttons

  • Front-panel LED

  • Firmware upgrade via micro USB port

  • Locking HDMI connector screws

  • Universal RS-232 code

  • Internal Universal power for worldwide

  • Backed by KanexPro 3 Year parts
