KanexPro HDMI® 150m Extender over HDBaseT™ w/ loop out
MPN: EXT-HDBT150M

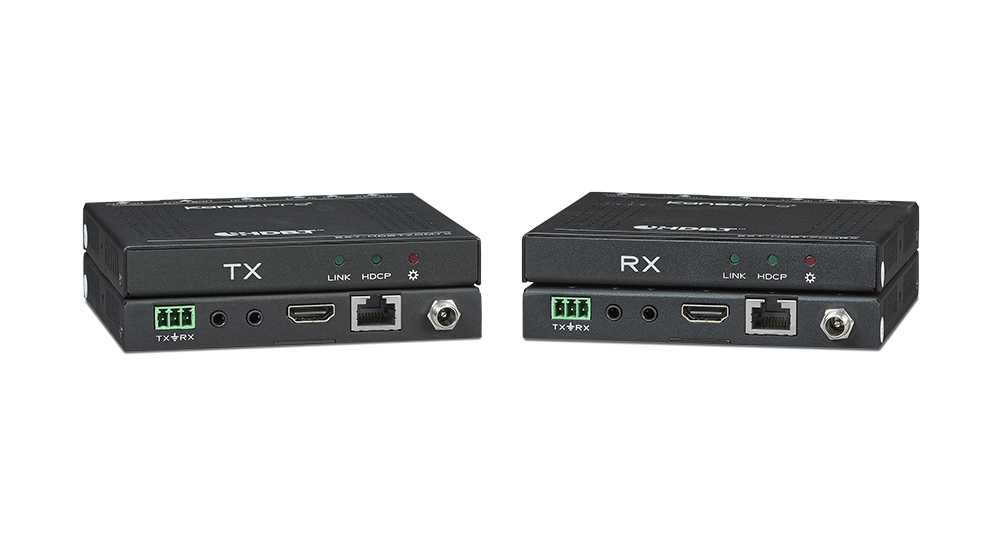

The KanexPro EXT-HDBT150M is a transmitter - receiver set which enables you to extend 1080p/60 HD signals up to 492 feet (150 meters) over single CAT6 cable using HDBaseT Technology.

It supports HDCP 1.4 with EDID pass-through, the extender supports PoE (power over Ethernet) requiring you to power from either the sender or receiver side.

Locking power supplies gives you the utmost flexibility and secures HDMI cables in place to eliminate intermittent signal loss or disconnected HDMI cables.

Applications

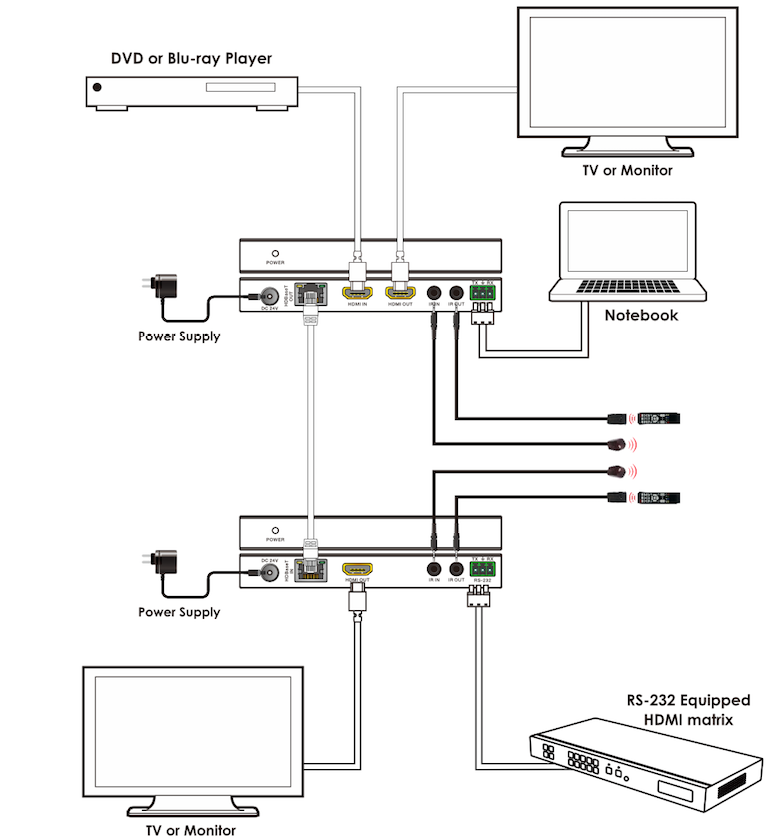

As mentioned above, this extender can be used in any environment where there is a need to extend high-resolution HDMI signals up to 492 ft. (150m) from an HDMI device like a computer to a remote display located far away.

Please Note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.


Features

  • Compact 150m HDMI extender

  • Extends up to 492ft. (150m) with full HD 1080p/60

  • Local HDMI loop out on Tx (sender)

  • Bi-directional PoE

  • HDCP 1.4 & EDID compliant

  • IR input/output

  • Dolby TrueHD & DTS Master Audio support

  • Supports uncompressed audio

  • Bi-directional RS-232 & IR control

  • One locking power supply included



  • Please Note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
